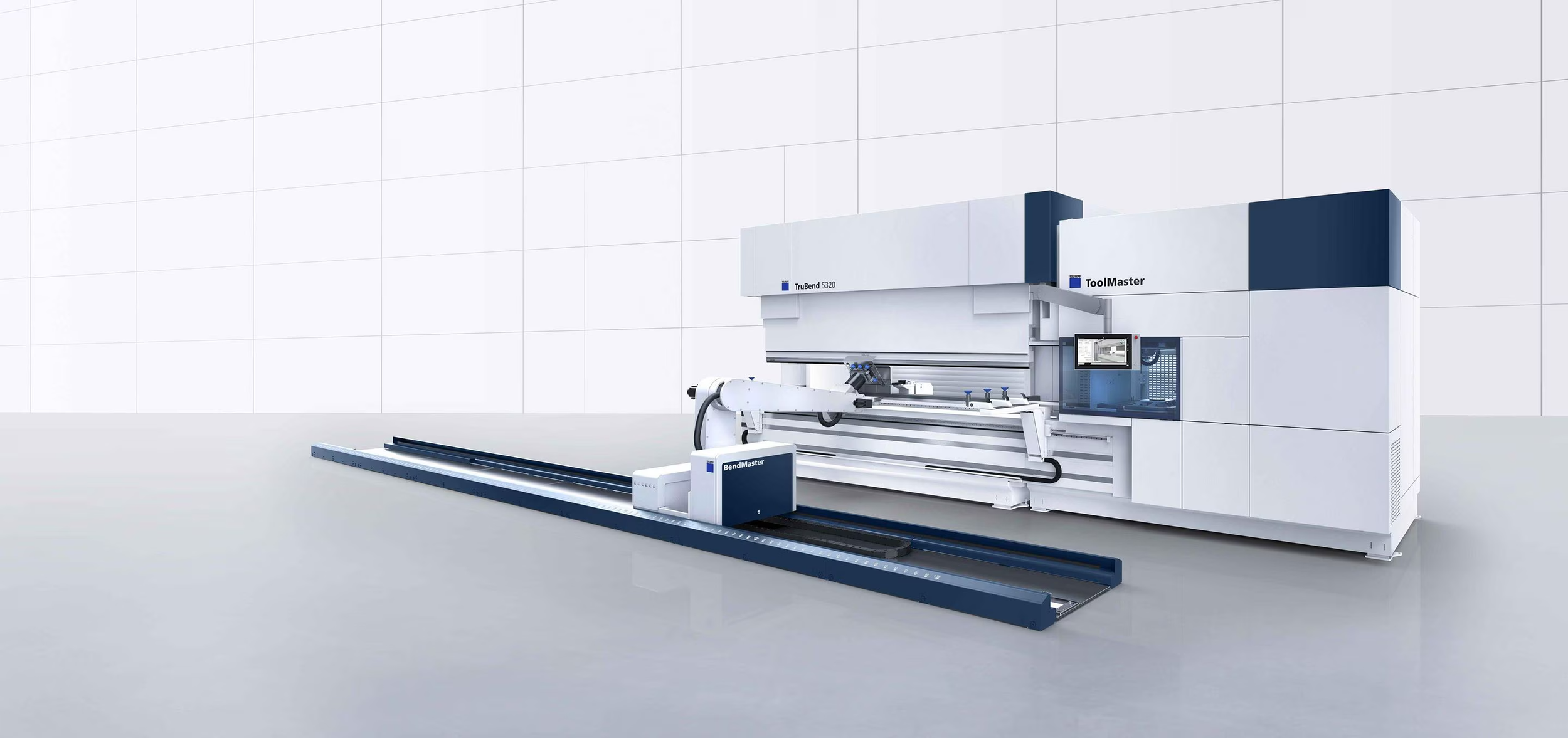

TRUMPF TruBend Cell 5000
Automated Bending Machines
The TRUMPF TruBend Cell 5000 is a fully automated bending system that combines precision, flexibility, and efficiency to optimize high-volume metal bending. By integrating robotic automation with the proven performance of the TruBend series, this system significantly reduces labor costs, increases throughput, and guarantees high-quality parts. With features like intelligent gripper systems, automatic tool changes, and advanced programming software, the TruBend Cell 5000 is designed for unattended operation, complex part geometries, and seamless integration with TRUMPF’s Industry 4.0 solutions.
Key Features
TecZone Bend Programming System: Enables automated bending sequence programming to optimize speed and accuracy.
ACB Laser & ACB Wireless Angle Measurement: Get precise bend angles without manual corrections, guaranteeing accuracy across all parts.
Automatic Gripper Change: The system automatically switches between grippers to handle a variety of part sizes and shapes.
BendMaster Automation: A 6-axis robotic arm precisely positions sheet metal for efficient and accurate bending.
ToolMaster Automation: Automatic tool changes increase flexibility, reducing setup times and improving job changeover efficiency.
Conveyor Belt & Pallet Conveyor: Automates part transport, streamlining workflow and reducing material handling costs.
Automated Guided Vehicle (AGV) Systems: Enables seamless integration with TRUMPF’s smart factory solutions, improving logistics and productivity.
Interface for connected material flow uses an automated guided vehicle (AGV) to automatically load and unload the bending cell without a direct storage connection being required.
Small parts package consists of a sheet removal station and gripper.
Increases machine utilization rate by setting up new programs with the automatic ToolMaster tool change system
Gripper changing console enables autonomous gripper changes as well as automatic processing of various orders without manual intervention.
Conveyor belt removes small parts that cannot be stacked
Pallet conveyor loads blanks or unloads finished workpieces without interrupting the bending operation.
Mechanical gripper enables the automated bending of small components.
Automatic tool change
Vacuum gripper for large components up to 220 lbs.
Create your gripper configurator in just a few minutes.
Applications
The TruBend Cell 5000 is ideal for fully automated, high-precision bending across a variety of industries. Key applications include:
Small Part Handling: Mechanical grippers efficiently manipulate small sheet metal parts for intricate bending.
Large Part Precision: Automated vacuum grippers securely hold large components with precision.
Complex Geometries: Capable of producing multi-bend components with exact repeatability, even in high-volume production environments.
Industrial Metal Enclosures: Electrical cabinets, machine housings, and protective casings benefit from precise, automated bends.
BendMaster Variants
BendMaster 60
View Technical Data
Max Part Size
78.74 x 39.37 in
Max Part Weight
88 lbs
Max Carrying Capacity
132 lbs
Min Sheet Thickness
0.028 in
Max Sheet Stack
27.56 in
Max Stacking Height Finished Parts
39.37 in
BendMaster Weight
1,367 lbs
BendMaster 150
View Technical Data
Max Part Size
118.11 x 59.06 in
Max Part Weight
220 lbs
Max Carrying Capacity
331 lbs
Min Sheet Thickness
0.028 in
Max Sheet Stack
27.56 in
Max Stacking Height Finished Parts
47.24 in
BendMaster Weight
1,728 lbs
Work In Tandem With
Storage Connection
For optimal material flow, the TruBend Cell 5000 connects with STOPA Large-Scale Storage Systems for automated sheet metal retrieval and transport, reduced handling times and improved efficiency, and seamless integration with TRUMPF Smart Factory logistics.
Tooling
Designed to work with a wide range of TRUMPF bending tools, the TruBend Cell 5000 offers optimal performance across different part geometries and material types.
Standard Bending Tools: Reliable, high-precision tools for everyday bending applications.
ZN Tools: Lightweight tooling for faster handling and reduced operator fatigue.
Special Bending Tools: Customized solutions for unique, high-complexity bending operations.
Tools with Controlled Bending: Advanced tool options for consistent, high-accuracy bends across multiple material thicknesses.
Software Integration
The cell integrates seamlessly with TRUMPF’s TecZone Bend software, allowing for automated bend program creation, real-time correction of bending sequences, complete connectivity with TRUMPF Smart Factory solutions. By linking with TRUMPF’s full software portfolio, the TruBend Cell 5000 enhances workflow automation and data-driven production.
