TRUMPF TruBend Series 5000
Unmatched Productive Bending Machines
The TRUMPF TruBend Series 5000 are the most versatile and productive bending machines in the TRUMPF lineup. Engineered for fast setup times, intelligent automation, and superior ergonomics, the TruBend Series 5000 is the ideal solution for fabricators seeking high throughput, repeatable accuracy, and minimal downtime. Whether handling small-batch custom work or large-scale production, these bending machines adapt to your workflow with advanced technology and user-friendly controls.
Key Features
High-Speed Precision: Innovative On-Demand Servo Drive offers fast cycle times with precise force application and reduced energy consumption.
Smart Bending Innovation: Automatic angle measurement and correction ensure perfect bends from the first part to the last.
Effortless Setup: The ToolMaster automatic tool changer minimizes setup time, increasing productivity for high-mix, low-volume production.
User-Friendly Operation: The Touchpoint TruBend interface simplifies programming, reducing operator training time.
Ergonomic and Safe: BendGuard safety systems enhance workplace safety while maintaining fast production speeds.

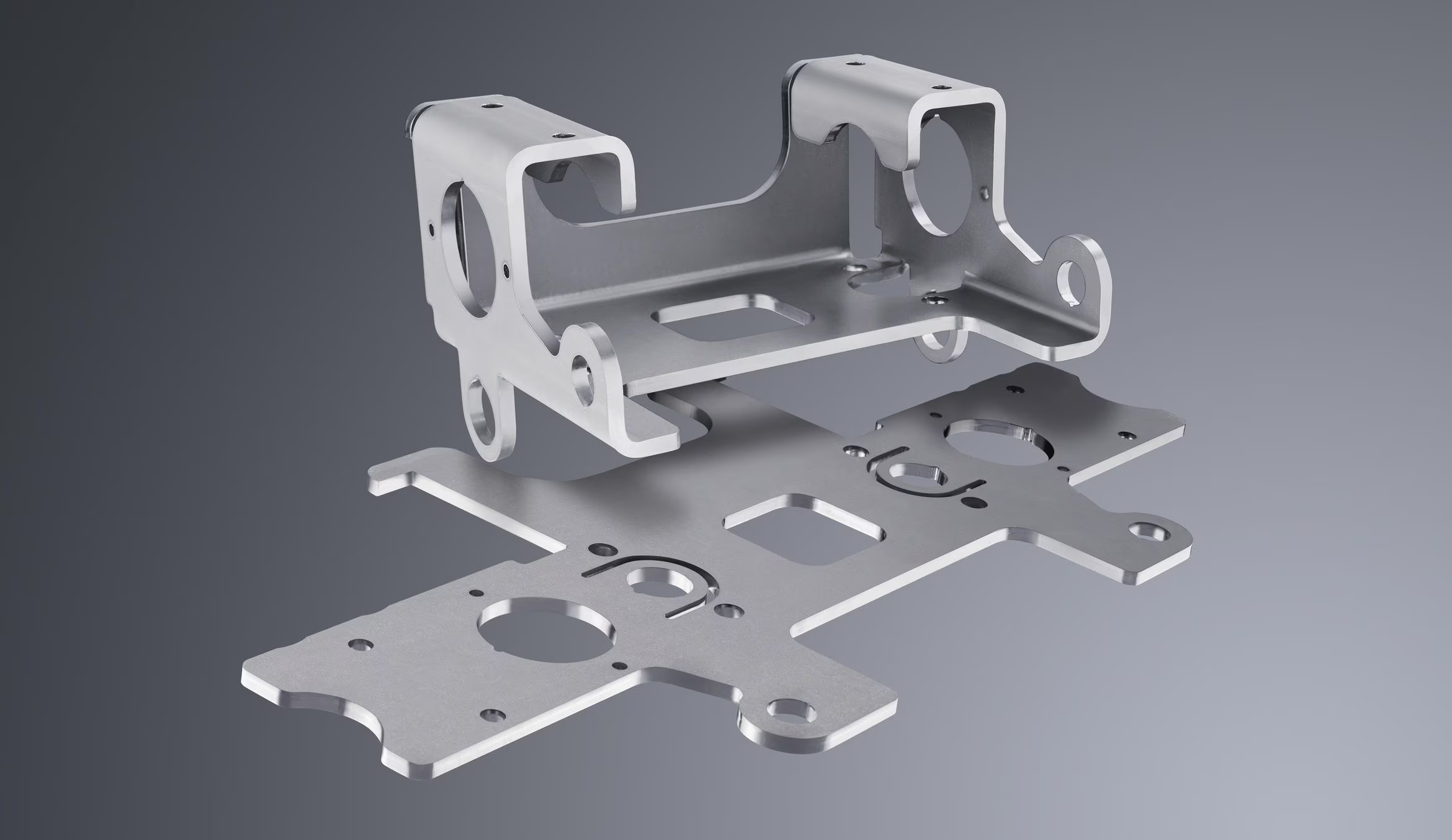

TruBend Series 5000 achieves high angle accuracy in thick sheet parts.

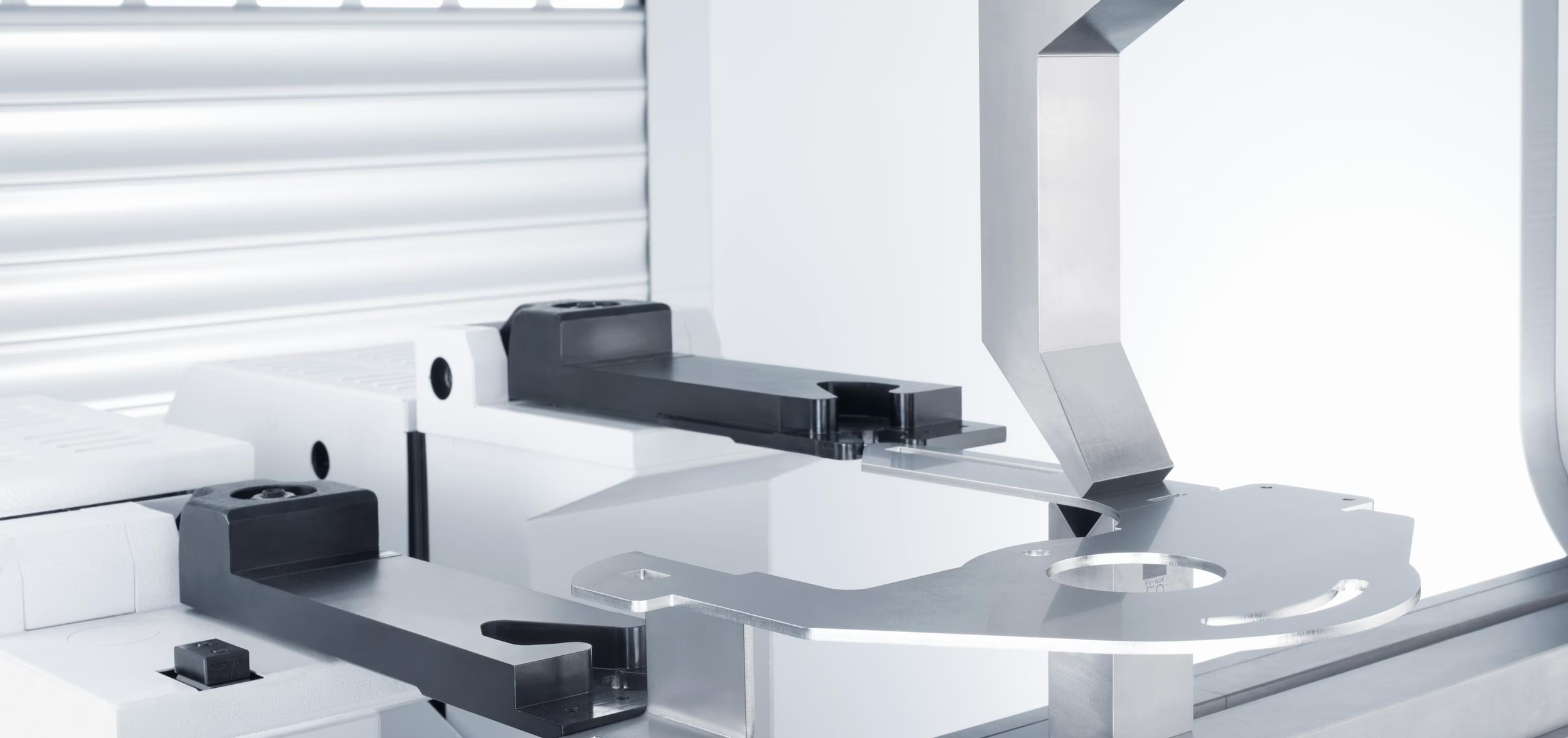

Flexible production due to 6-axis backgauge

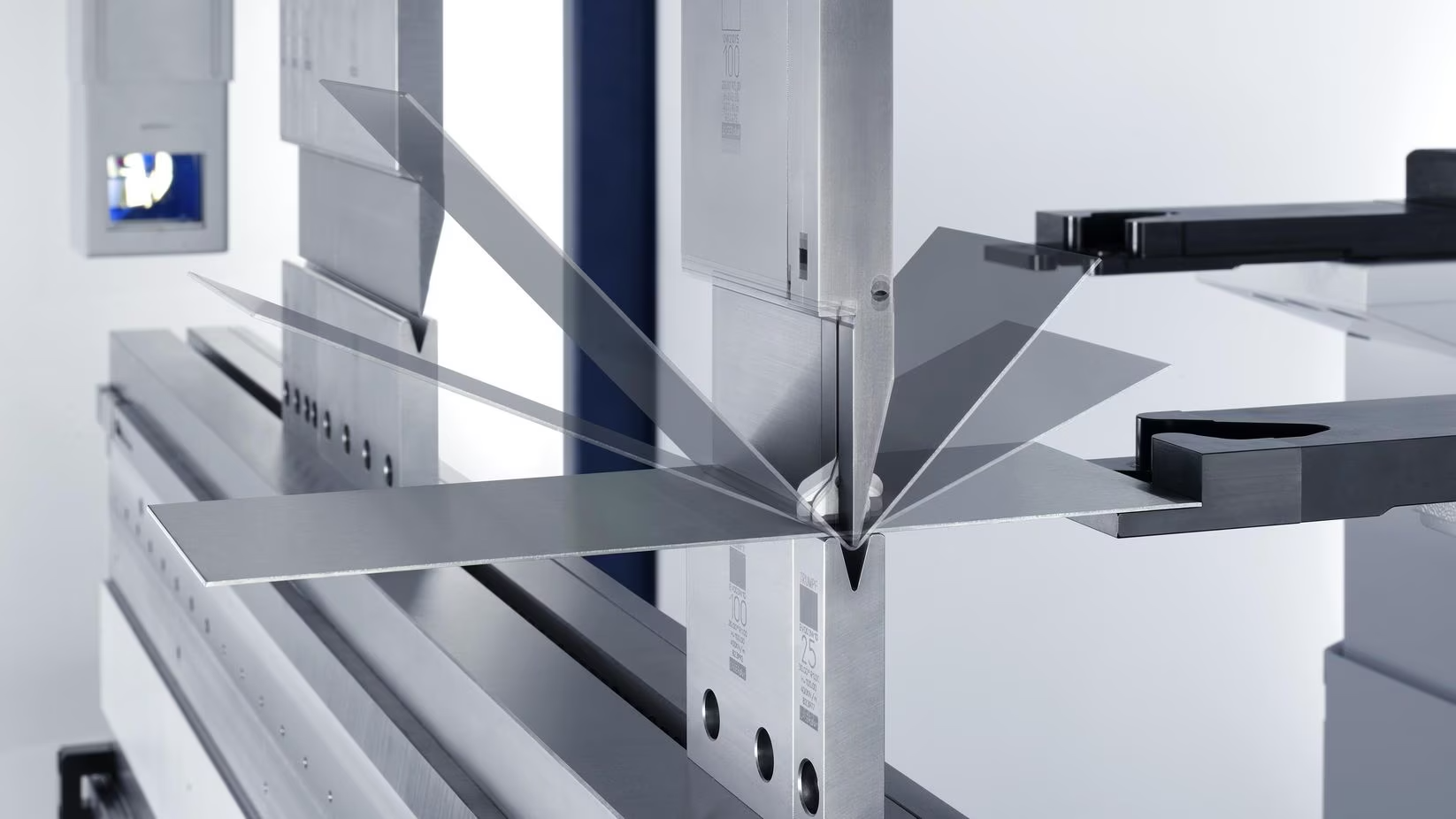

ACB Wireless angle measuring system
Bending aids provide valuable help for angles up to 30 degrees.
ACB laser angle measuring system

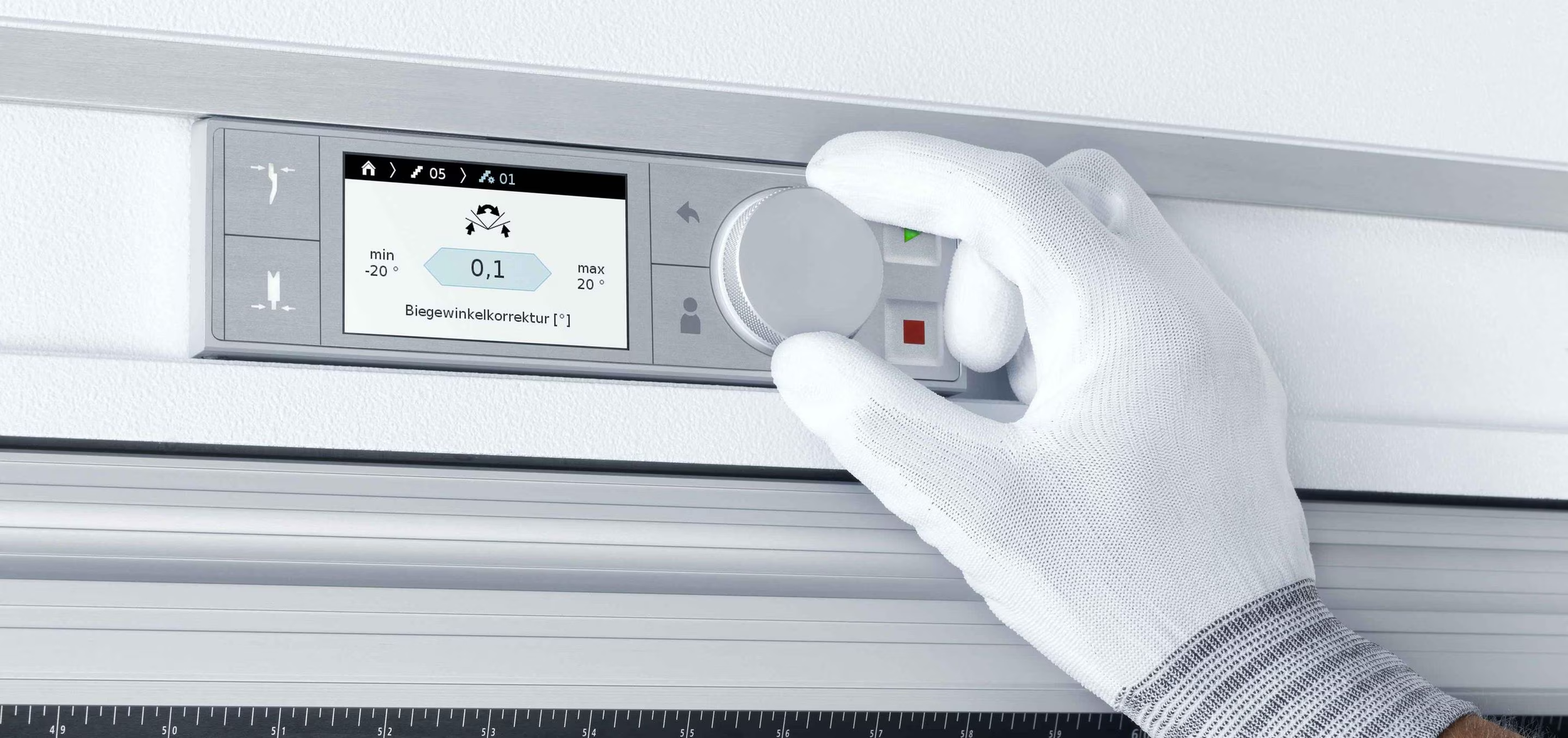

Mobile control saves you time spent walking

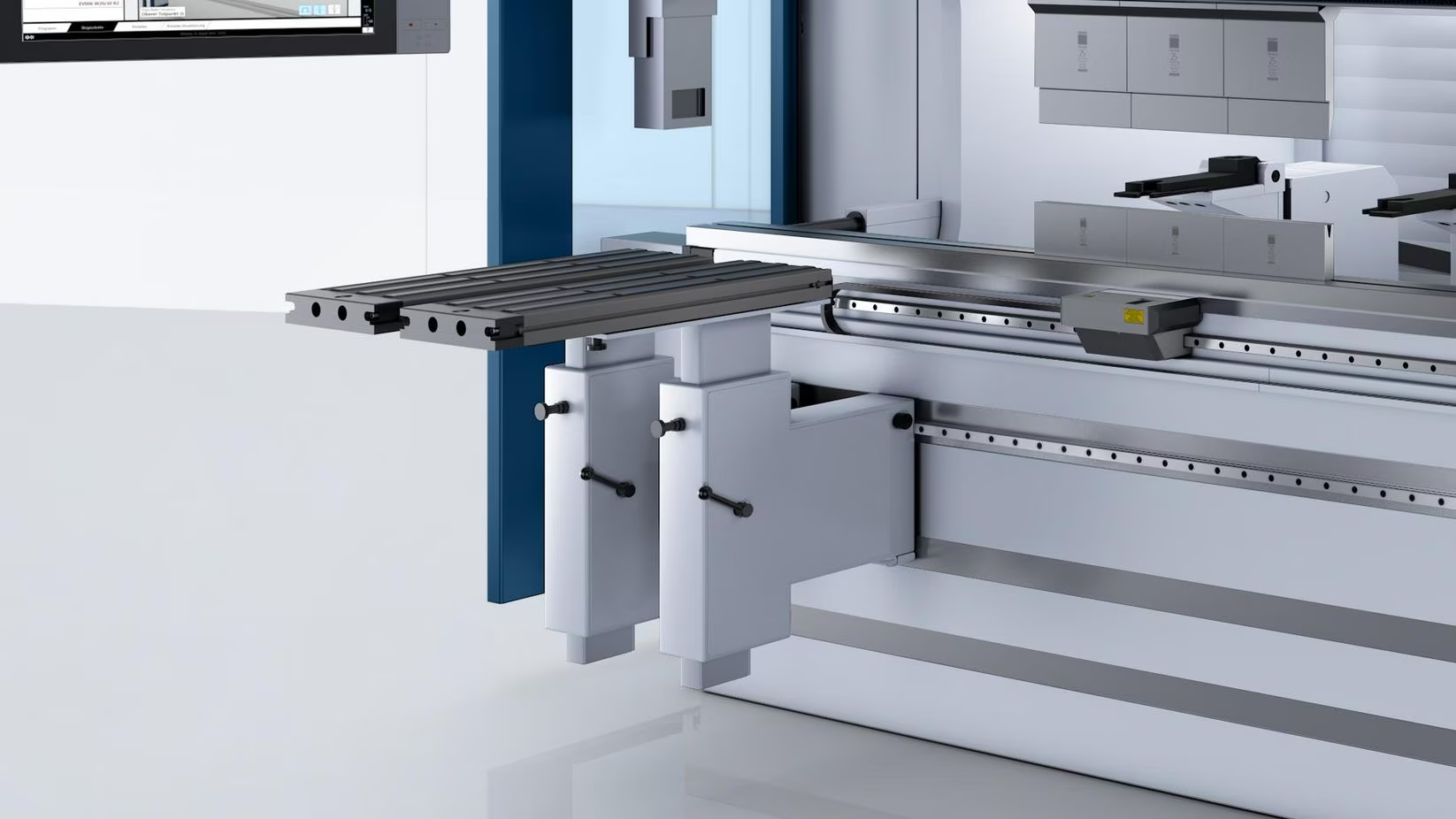

Support brackets with variable height adjustment make component handling easier.

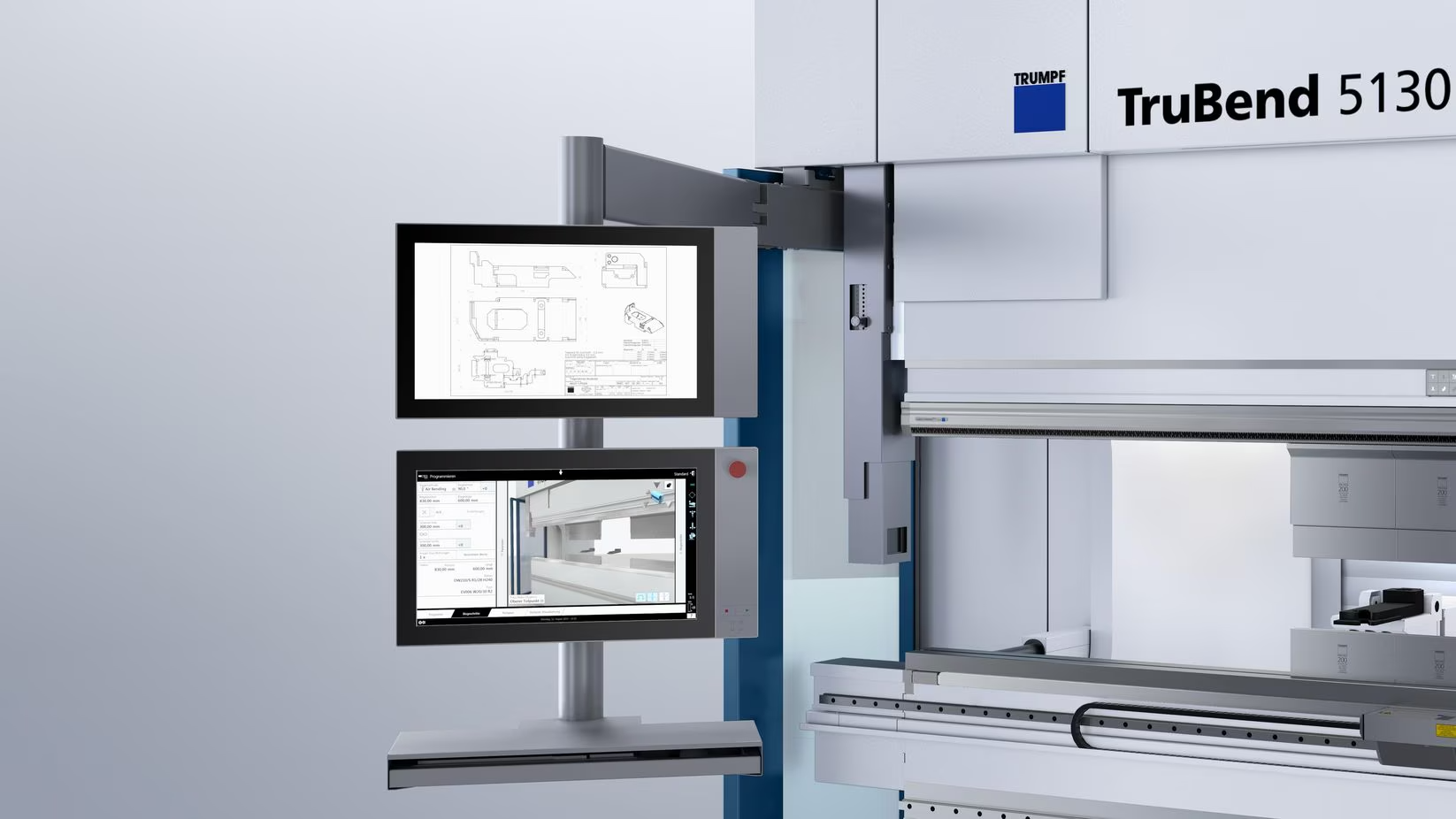

Program and produce simultaneously with an additional monitor and shop floor programming.

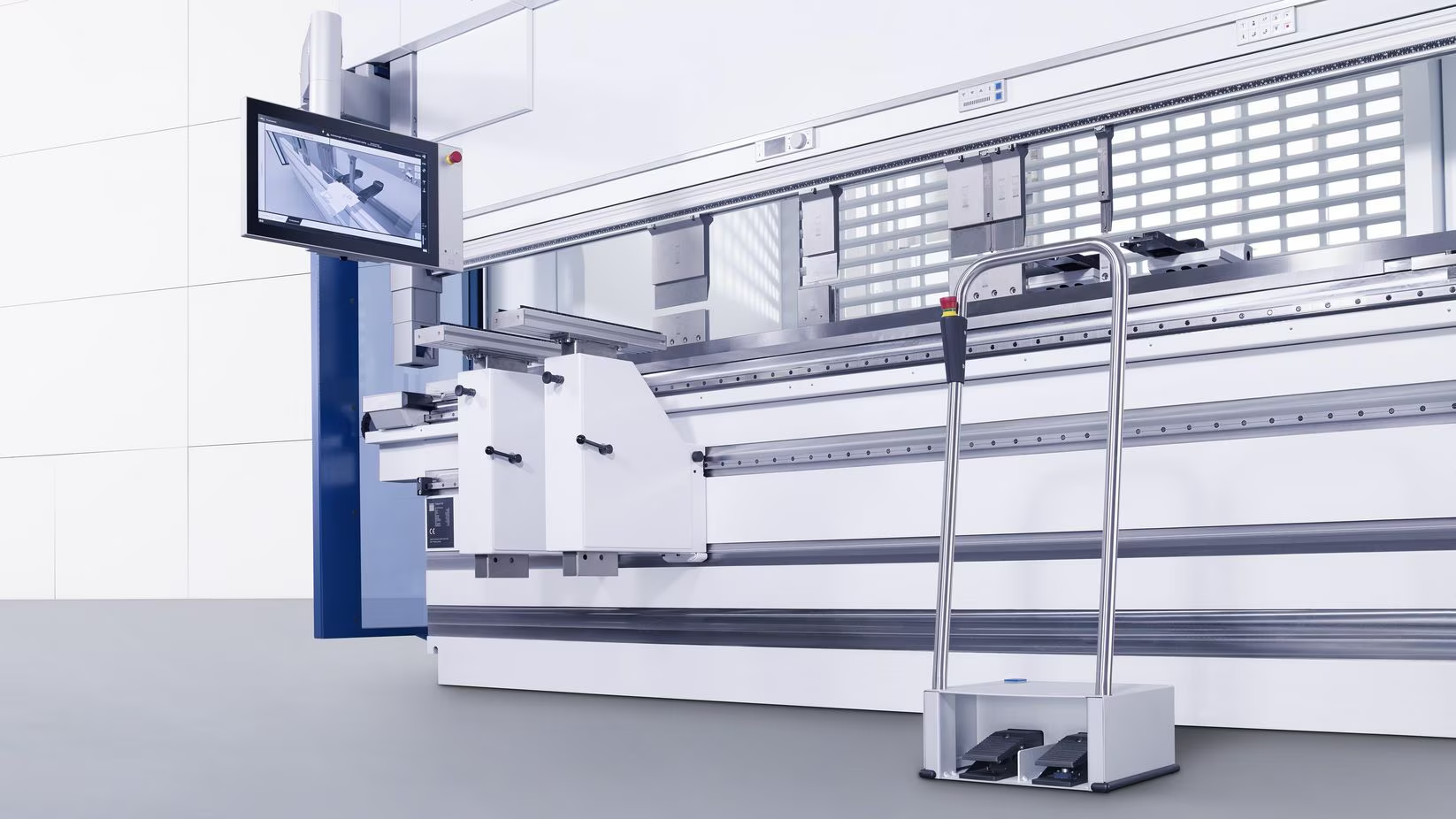

Wireless foot switch provides more freedom of movement and eliminates the risk of tripping.
Part indicator shows the machine operator how they have to insert the bending part on the monitor of the machine control.
Applications
The TruBend Series 5000 is ideal for a wide range of metal fabrication applications, including:
Industrial enclosures
Sheet metal components for aerospace and automotive
Precision parts for construction and infrastructure
Custom brackets and metal housings
Medical and stainless steel fabrications
Machine Variants
TruBend 5085
Compact and highly precise, the TruBend 5085 is perfect for small to mid-sized bending applications that require efficiency and accuracy.
View Technical Data
Press Force
190088 lbf
Bending Length
87.01 in
Width Between Columns
68.90 in
Usable Open Height
15.16 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
118.90 in
Width
70.87 in
Height
111.81 in
Weight
18300 lbs
TruBend 5085 (S)
View Technical Data
Press Force
190,088 lbf
Bending Length
107.09 in
Width Between Columns
88.98 in
Usable Open Height
24.21 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
138.98 in
Width
70.87 in
Height
111.81 in
Weight
20,062 lbs
TruBend 5130
A mid-range powerhouse, the TruBend 5130 balances performance and versatility, making it a great choice for high-mix production.
View Technical Data
Press Force
292,251 lbf
Bending Length
127.17 in
Width Between Columns
105.91 in
Usable Open Height
15.16 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
156.69 in
Width
74.80 in
Height
111.81 in
Weight
26,015 lbs
TruBend 5170
For larger and more demanding projects, the TruBend 5170 delivers higher bending force and extended capabilities for complex parts.
View Technical Data
Press Force
382,175 lbf
Bending Length
127.17 in
Width Between Columns
105.91 in
Usable Open Height
24.21 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
156.69 in
Width
74.80 in
Height
111.81 in
Weight
31,200 lbs
TruBend 5170 (S)
View Technical Data
Press Force
382,175 lbf
Bending Length
167.32 in
Width Between Columns
144.88 in
Usable Open Height
24.21 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
195.67 in
Width
74.80 in
Height
111.81 in
Weight
39,355 lbs
TruBend 5230
With high pressing force and advanced automation options, the TruBend 5230 is designed for high-volume production and intricate metalwork.
View Technical Data
Press Force
516,061 lbf
Bending Length
127.17 in
Width Between Columns
105.91 in
Usable Open Height
24.21 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
163.39 in
Width
80.91 in
Height
118.11 in
Weight
37,953 lbs
TruBend 5230 (S)
View Technical Data
Press Force
516,061 lbf
Bending Length
167.32 in
Width Between Columns
144.88 in
Usable Open Height
24.21 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
202.36 in
Width
80.91 in
Height
118.11 in
Weight
43,755 lbs
TruBend 5320
The most powerful machine in the series, the TruBend 5320 handles thicker materials and large-scale production with ease.
View Technical Data
Press Force
719,389 lbf
Bending Length
174.02 in
Width Between Columns
144.88 in
Usable Open Height
24.21 in
Throat Depth
16.54 in
Max Speed Y Axis
0.98 in/s
Length
204.33 in
Width
80.91 in
Height
125.98 in
Weight
51,586 lbs
Work In Tandem With
Automation & Machine Connectivity
The TruBend Series 5000 integrates seamlessly with TRUMPF automation solutions. Features like the TruBend BendMaster robotic bending system keep consistent part quality with minimal operator intervention and maximum efficiency.
Tools & Precision Bending

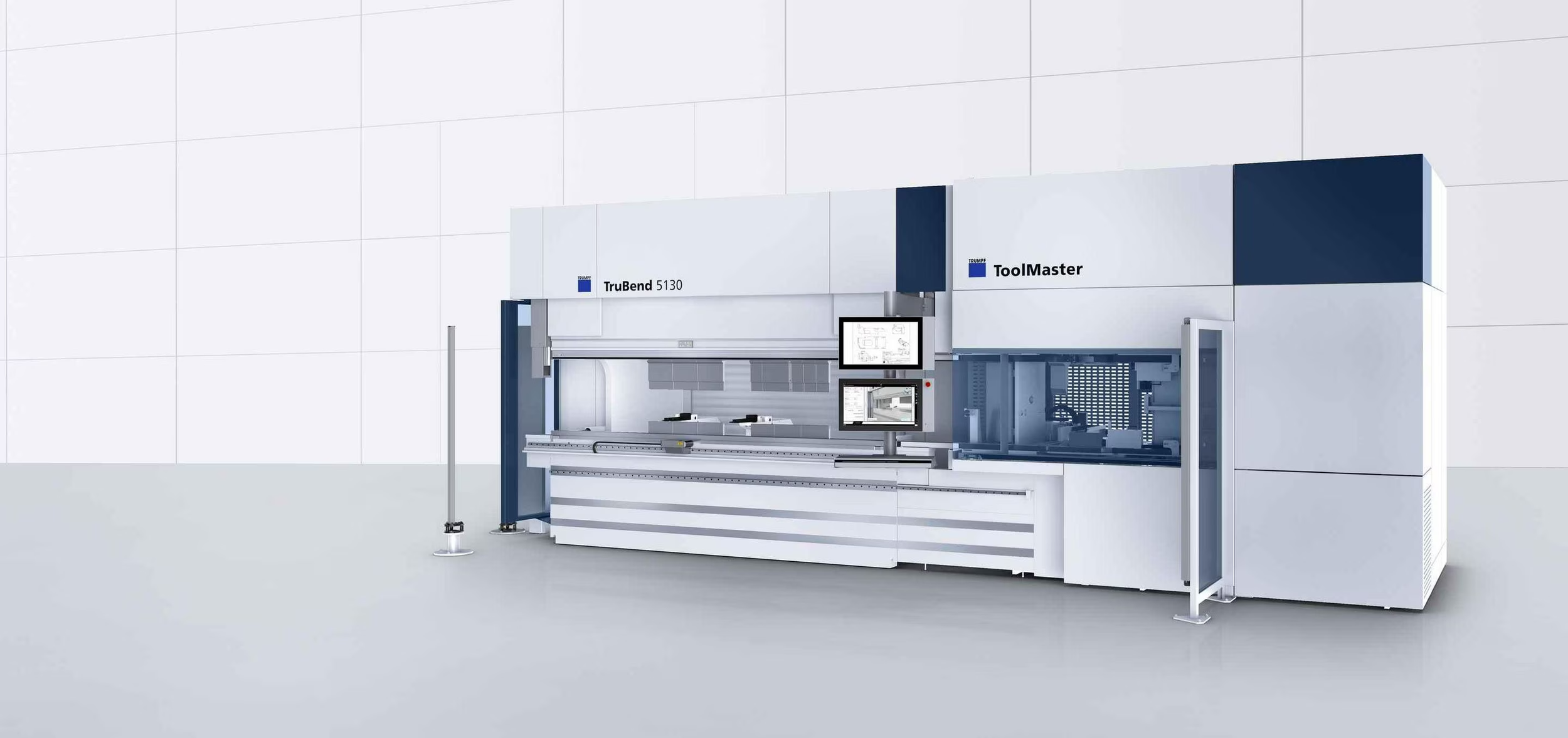

The TruBend Series 5000 is compatible with TRUMPF ToolMaster, an automatic tool changer that streamlines production by quickly switching between tool setups. The machine also supports a range of precision tooling, including:
Standard bending tools

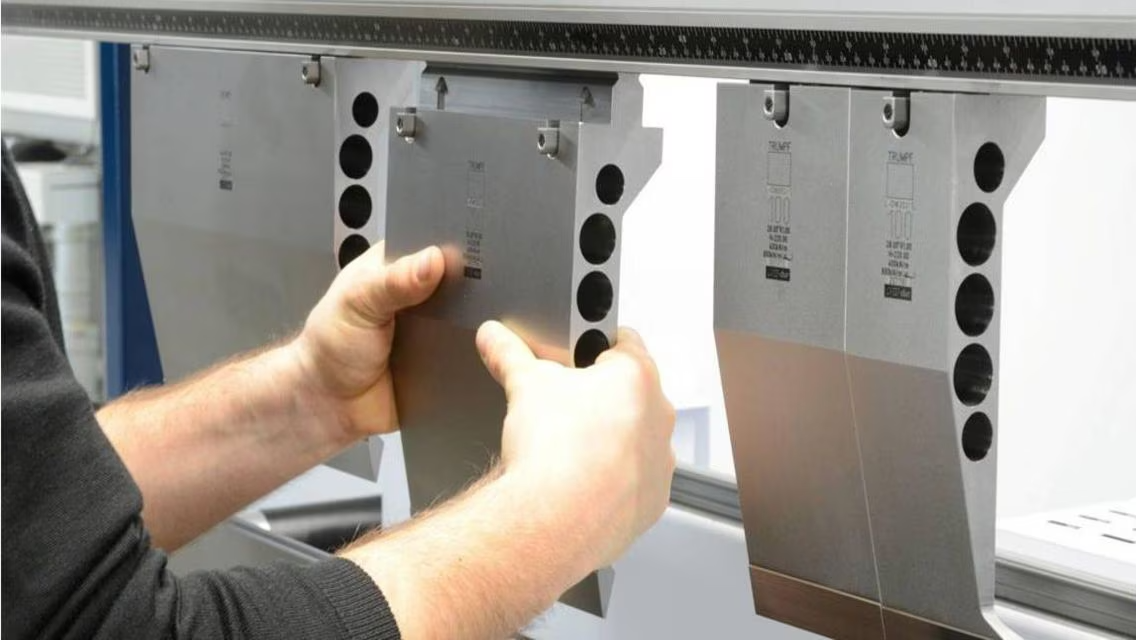

Lightweight ZN tools for easy handling
Specialized bending tools for unique geometries
Sensor tools for automatic angle correction
Software Integration
Optimize workflow with TruTops Boost, TRUMPF’s all-in-one software for programming, process planning, and job management. This system reduces errors and improves efficiency by seamlessly communicating between design, bending, and production.
Get a Quote for the TRUMPF
TruBend Series 5000
Whether you're expanding your bending capabilities or optimizing your current production, the TruBend Series 5000 provides the perfect balance of precision, speed, and automation. Contact Maintecx today for pricing and availability!
