TruPunch 5000
Redefining Punching Productivity

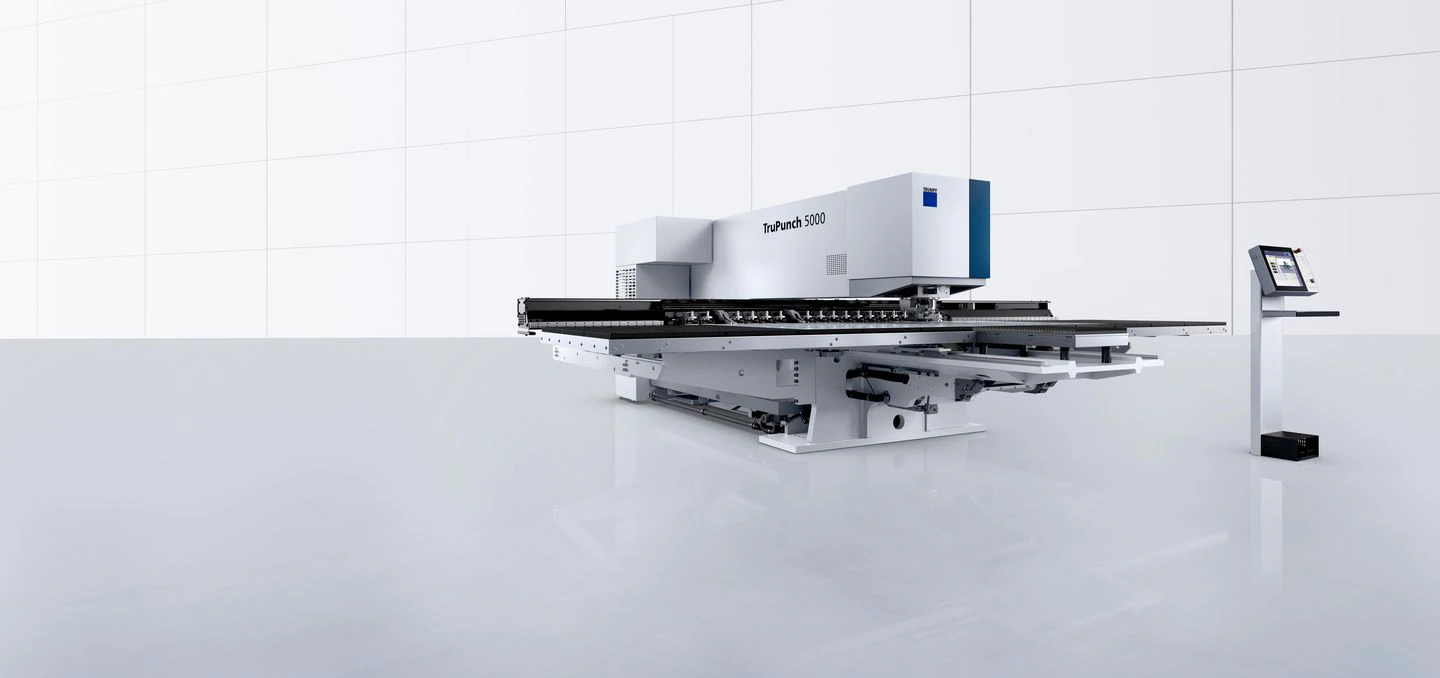

Maintecx is pleased to introduce the TruPunch 5000, the world’s fastest punching machine designed to improve your metal fabrication processes. This high-end machine sets new benchmarks for productivity, process reliability, and flexibility, making it an ideal solution for manufacturers seeking to optimize their operations.
Key Highlights of the TruPunch 5000
Unmatched Speed: Achieve punching speeds of up to 1,600 strokes per minute and marking capabilities reaching 2,800 strokes per minute, unlocking new productivity power.
High-Quality Parts: Ensure superior parts with features like backlash-free drives, retractable clamps, and an active die that maintains low-scratch surfaces.
Versatile Tool Handling: Accommodate up to 90 tools with the ToolMaster Linear, enabling fast and efficient tool changes to minimize downtime.
Intelligent Automation: Integrate seamlessly with various automation components, from material handling to tool changes, creating a fully optimized punching process that can evolve with your needs.
Eco-Friendly Operation: Reduce energy consumption with the ECO function, which automatically switches the machine to an energy-saving standby mode during production breaks.
Integrated Flattening for Efficient Processing
The TruPunch 5000 features an integrated flattening capability — a standout function that ensures punched parts maintain a flat surface. By eliminating the need for additional post-processing, this feature saves valuable time and resources, streamlining your production process and increasing capacity.
Advanced Sheet Format Recognition
Equipped with advanced sheet format recognition technology, the TruPunch 5000 automatically detects and adjusts to various sheet sizes. This intelligent feature consolidates the setup process, reduces the risk of errors, and contributes to overall efficiency, allowing you to focus on consistently producing high-quality parts.
TruPunch 5000
Large
TruPunch 5000 Medium
DIMENSIONS
WIDTH
DEPTH
HEIGHT
7610 mm 1
8171 mm 1
2072 mm 1
257.480 in 1
291.142 in 1
81.575 in 1
MAXIMUM STROKE RATE
PUNCHING
(E = 1 MM)
MARKING
1350 1/min
3000 1/min
1600 1/min
3000 1/min
WORKING RANGE
PUNCHING MODE, X AXIS
PUNCHING MODE, Y AXIS
MAXIMUM SHEET THICKNESS
MAXIMUM WORKPIECE WEIGHT
MAXIMUM PUNCHING FORCE
3050 mm
1550 mm
8 mm
280 kg
220 kN
2500 mm
1250 mm
8 mm
200 kg
220 kN
TOOLS
MULTITOOL TOOL CHANGING TIME
0.3 s
0.3 s
NUMBER OF TOOLS/CLAMPS
21 pieces/ 4 pieces
18 pieces/ 3 pieces
PART REMOVAL
MAXIMUM PART SIZE, PART REMOVAL FLAP, PUNCHING
MAXIMUM PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE)
500 mm x 500 mm
80 mm x 50 mm
500 mm x 500 mm
80 mm x 50 mm
CONSUMPTION VALUES
AVERAGE POWER INPUT OF ACTIVE AUTO-SHUTDOWN
0.5 kW
0.5 kW
AVERAGE POWER INPUT IN PRODUCTION
9.5 kW
9.5 kW
Experience the TruPunch 5000 Advantage with Maintecx
As the exclusive representative of TRUMPF in the upper Midwest, Maintecx is your trusted partner in bringing the TruPunch 5000 to your facility. Our experienced professionals will work closely with you to integrate this state-of-the-art punching machine into your operations, providing comprehensive support and training to ensure maximum return on your investment. Contact Maintecx today to learn how the TruPunch 5000 can optimize your metal fabrication processes.
