TRUMPF TruBend Center 5030
Semi-Automatic Panel Bending
The TRUMPF TruBend Center 5030 is a semi-automatic panel bender designed for versatility, precision, and repeatability in bending complex sheet metal components. Equipped with advanced automation for part handling, intelligent tool changing, and real-time angle measurement, this machine makes panel bending easier, faster, and more cost-effective. Whether you’re working with delicate shrouds, large trays, or intricate parts with complex bends, the TruBend Center 5030 provides superior accuracy with minimal operator intervention.
Key Features
ACB Laser Angle System: Contact-free angle measurement guarantees accurate bends for repeatable part quality.
Integrated Tool Changer: Automates upper blank holder tool setup for reduced setup time and precise tool selection.
2-Axis Part Manipulator: Automatically repositions sheet metal for multiple bends, enabling high process reliability on intricate designs.
Backgauge System: Reliably positions components with complex geometries for smooth handling and precision.
Horn blank holder can easily produce nestings with inner edges.
With an extra blank holder tool (ENW) you can also produce very narrow profiles or components with formed sections near the bending lines.
Extra bending tool (ZBW) can be set up automatically in order to bend flanges or offset bends.
Program and produce at the same time with an additional monitor and shop floor programming.
On-demand servo drive supplies your TruBend machine with precisely the amount of energy needed.
Mild steel container
The backgauge system reliably positions the components.
2-axis part manipulator automatically positions the sheet metal for all bends on every component edge.
Integrated tool changer, ToolMaster Bend, automatically sets up the right upper bank holder tools.

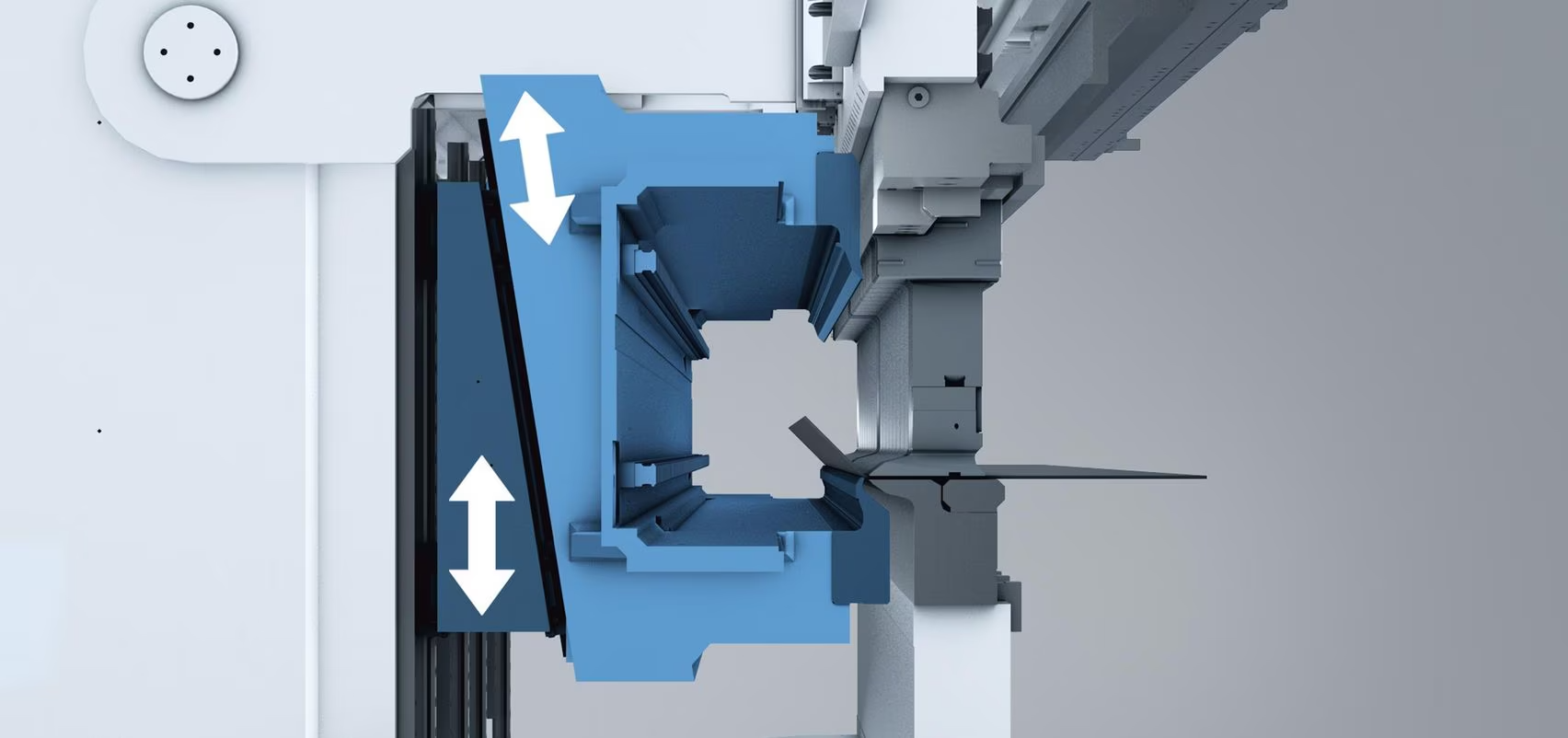

Angle drive uses a simple continuous path control to ensure maximum accuracy on each bend.
Applications
The TruBend Center 5030 excels in panel bending for a wide range of industrial applications, including:
Delicate shrouds with intricate bends
Large-scale trays requiring consistent, high-repeatability bending
Multidimensional parts with formed sections, cutouts, negative bends, and radii
Mild steel guard plates and other high-strength sheet metal components
Its semi-automatic operation and intelligent part manipulation allow for precise, high-efficiency bending across a variety of industries, including aerospace, enclosures, industrial machinery, and automotive components.
TruBend Center 5030 Technical Data
FEATURE
SPECIFICATION
MAX BENDING LENGTH
MIN BENDING LENGTH
MIN BENDING DEPTH (standard tool)
MIN BENDING DEPTH (ENW)
MAX BOX HEIGHT
MAX SHEET THICKNESS (Mild Steel)
MAX SHEET THICKNESS (Stainless)
MAX SHEET THICKNESS (Aluminum)
MIN MATERIAL THICKNESS
TRAVEL PATH IN X DIRECTION FOR 2-AXIS PART MANIPULATOR
STROKE OF 2-AXIS PART MANIPULATOR
123 in
3 in
5.25 in
1.5 in
8.5 in
0.12 in
0.08 in
0.12 in
0.02 in
13.5 in
5.5 in
Work In Tandem With
Tooling
The TruBend Center 5030 is designed to work seamlessly with TRUMPF’s advanced bending tools, allowing for customizable setups based on material type and part geometry.
Extra Blank Holder Tools (ENW): Secure uniquely shaped or oversized workpieces.
Extra Bending Tools (ZBW): Achieve precise bends on complex profiles.
Horn Blank Holders: Handle asymmetrical or difficult part designs with ease.
Standard & Specialty Bending Tools: Adapt to diverse fabrication needs with TRUMPF's expansive tooling options.
Software
The TruBend Center 5030 integrates with TRUMPF’s TecZone Bend software, enabling:
Automated bend sequence planning
Real-time angle correction for accurate bending
Seamless connectivity with Industry 4.0 Smart Factory solutions
By integrating with the entire TRUMPF software suite, fabricators can optimize production workflows, reduce setup times, and increase overall efficiency.
